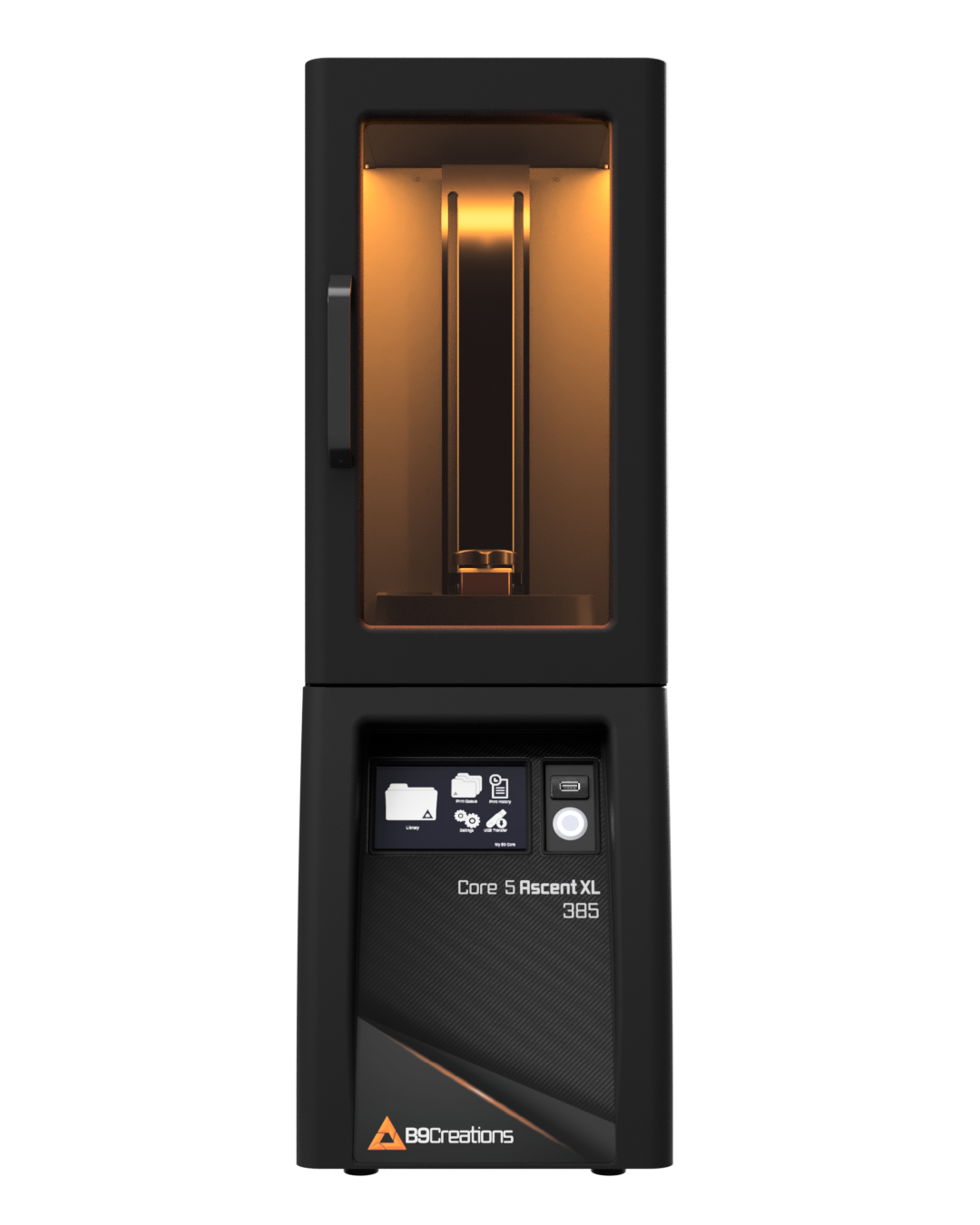

Take your creations to new heights with the B9 Core 5 Series Ascent XL. With a 12.5-inch Z-height, this platform is ideal for producing taller parts in medical, aerospace, and other applications where precision is paramount. Boasting a powerful 385 nm light engine, the Ascent XL enables you to print with clear or other specialty materials—while delivering both the design space and accuracy required for your projects.

Key Features

Bring your designs to life over lunch, not overnight. The B9 Core Series offers unmatched resolution, surface finish, and speed so you can spend more time on what matters - growing your business.

What's Included in the box:

  • 1 kg of Resin (customer's choice)
  • 2 Resin Vats - need to add to cart
  • B9Creations Finishing Kit
  • Remote Factory Startup
  • 1 year warranty


Technical Data

Machine Core 5 Ascent XL – 385 12.5 Inch Z-height
Build Envelope 124.8 x 70.2 x 320 mm
Light Source Industrial HD UV LED Light Engine - 385 nm
Software FAST™ Technology Powered by B9Create
Effective Resolution (X,Y) <25μm
Min/Max Build Speed* 15-85+ mm/hr
Z Resolution 10μm*
Material System B9Creations Resins & 3rd Party Materials
Connectivity Wi-Fi, Ethernet & USB drive
Printer Dimensions 267 x 420 x 800mm (10.5 x 16.5 x 31.5")
Printer Weight 35kg (78lbs)
Power 12VDC 7A
Warranty 1-Year



Full Speed Ahead

  • The Fastest DLP 3D printer on the market
  • Reduce post-processing time with FAST Technology and our B9Clean XL and B9 Model Cure XL

Top Choice for Value

  • Lowest cost per unit of throughput
  • Return on investment in 12-18 months
  • Financing available
