B9 Model Cure
B9 Model Cure
2828 Plant Street
2828 Plant Street
Ste 2
Rapid City SD 57702
United States
Choose options

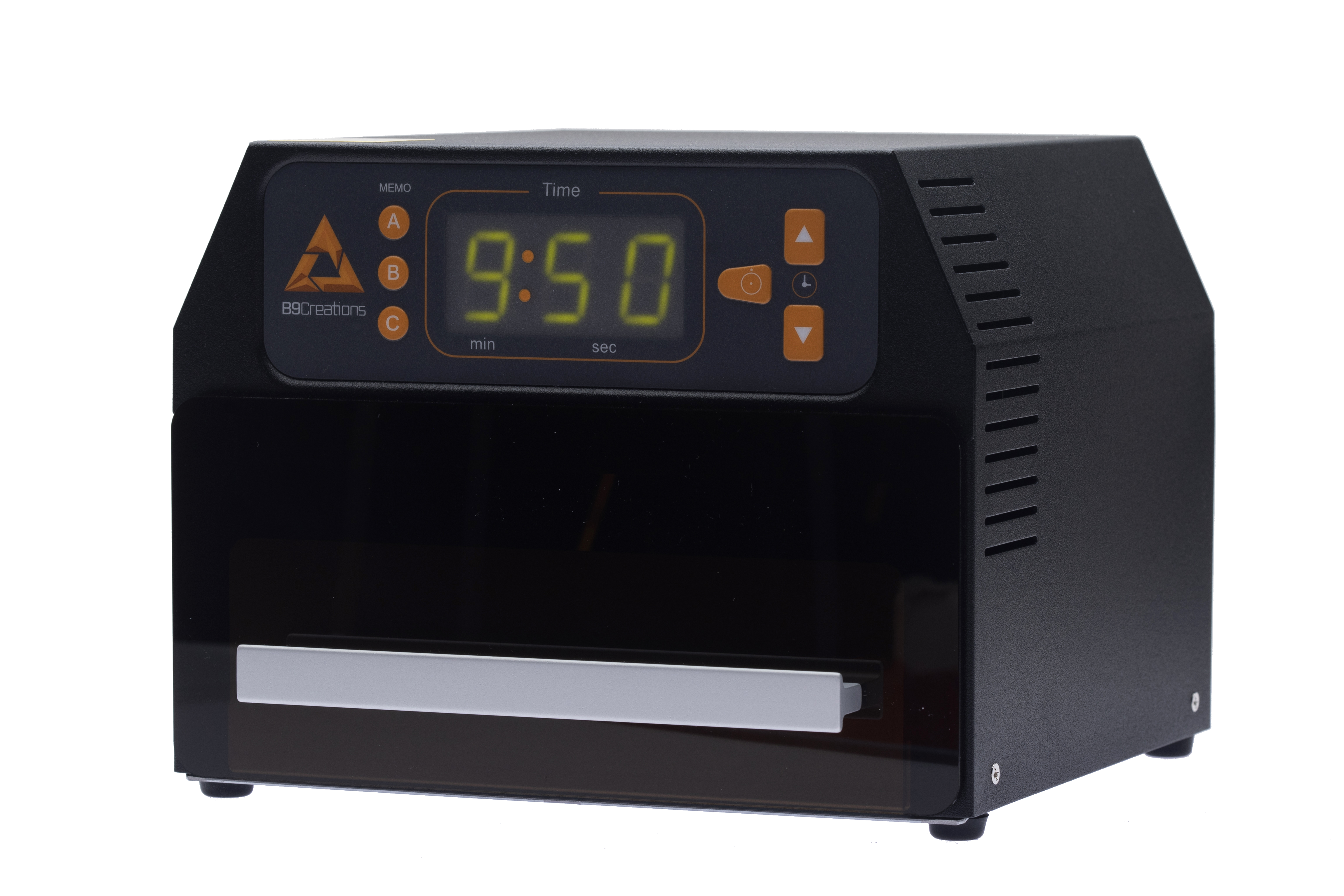

The B9 Model Cure is a compact, high-intensity UV post-curing solution for resin models in applications such as jewelry, prototyping, model making, and more. Slide out drawer, timer, completion alarm, and memory settings enable fast, precise, repeatable workflow. The B9 Model Cure's powerful design dramatically reduces curing times compared to other curing units.
Key Features
- Includes plastic vessel to cure models under water.
- Digital timer display: timer selection from 10 seconds to 9:50 maximum.
- 3 memory settings allow for repeatable workflow.
- Wide chamber, capable of curing several models at once.
- Light-energy intensity over 40.0 mW/cm², much higher than competitors.
- Compact, space-saving design.
- Audible beeping notice when curing process is completed.
- Safety switch functions to prevent light emission when door is open.
- Typical LED life exceeds 50,000 hours which is equates to more than 60 years at 1 hour per day.
What's Included in the box:
- B9 Model Cure
- Power Cord
- Curing Water Dish
- Orange Safety Eyewear Glasses for UV Protection
- 1 Year Warranty
B9 Model Cure Technical Data
| Power Output | 65 Watts |
| Power Input | 100 - 220 VAC / 50-60 Hz |
| Light Source | UV LED |
| UV Wavelength | 390 - 410 nm |
| Unit Weight |
3.3KG (7.27 lbs) |
| External Unit Dimensions |
21.6cm x 20cm x 15cm |
| Internal Chamber Dimensions |
12.7cm x 17cm x 7cm |
| Curing Water Dish Dimensions | 6" x 3" x 2" |
Due to the wide variation in curing wavelength, resin formulation, and curing settings associated with third-party resins and printers, B9Creations can only guarantee the effectiveness of the B9 Model Cure when using the B9 Resin Line with B9Creations Printers.
